LK-RC SERIES
|P2.6|P2.976|P3.91|P4.81|P5.95|
Product Overview:
LEDlink LK-RC series is a great LED display for rental. With modular design, it's lightweight and front service for both indoor and outdoor. If you need a rental LED video wall for advertising or temporary events, this LED display will be your perfect choice. This HD LED display is available in the following pixel pitches: 2.976mm, 3.91mm, 4.81mm, 5.95mm.
Product Features:
High-performance LEDs:
LEDlink designs LED with high contrast black LED 3-in-1.
Waterproofness:
The waterproof rating is IP65, and this outdoor led video wall can be used in various applications.
Robust Driver IC:
It produces lower heat that can protect electronic components. With PWM+DES functions, this LED display is high refresh rate & grayscale and more energy-saving.

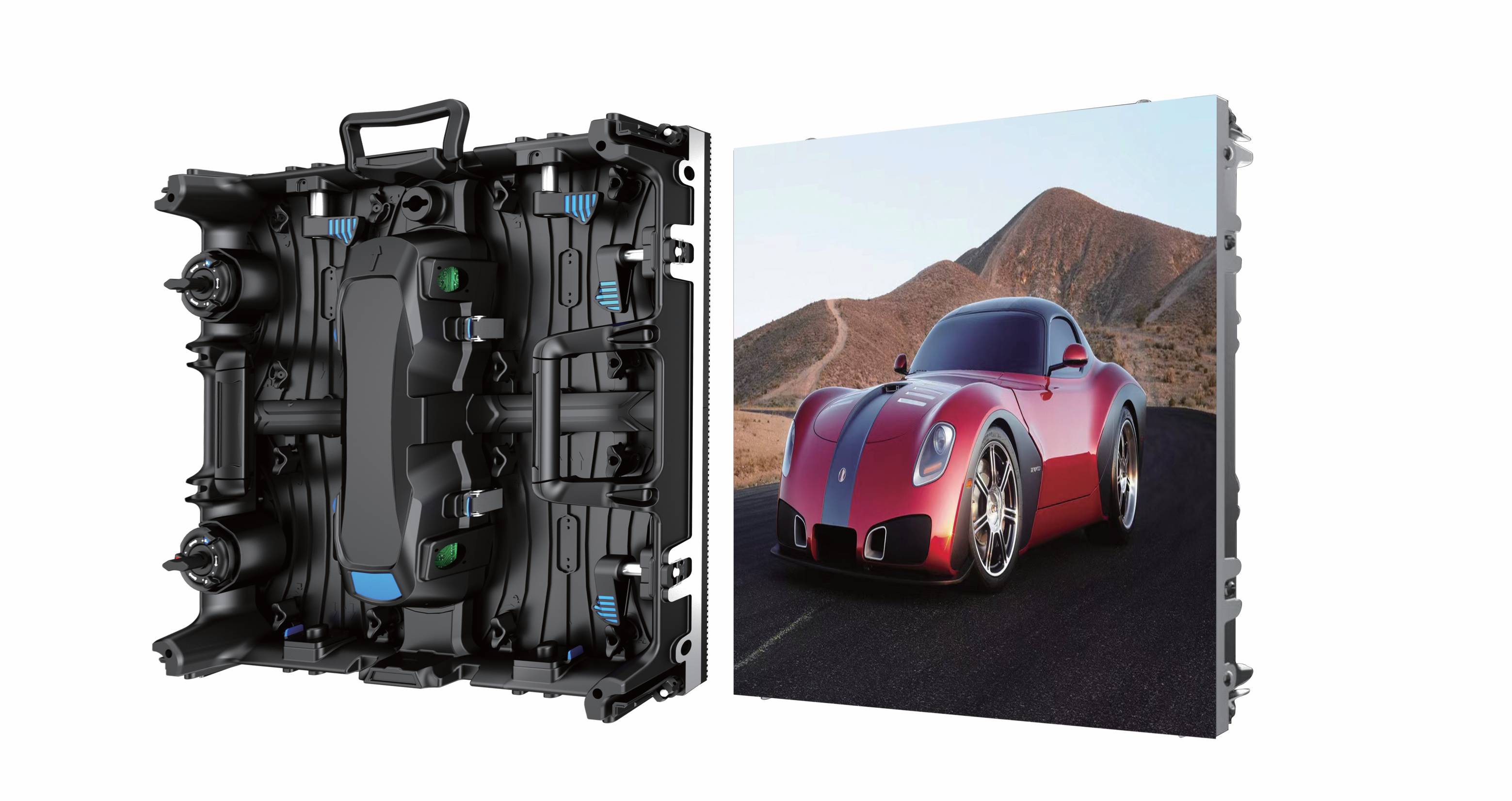

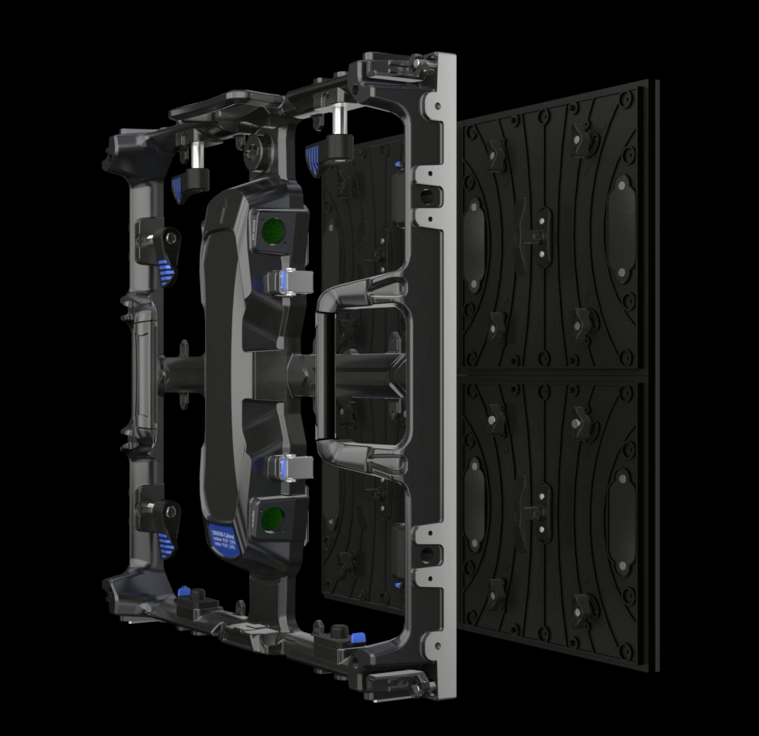

Brilliant Module Design:
250*250mm LED module is easy to maintain. And it only has one connector for better waterproofing. All corners can be protected.

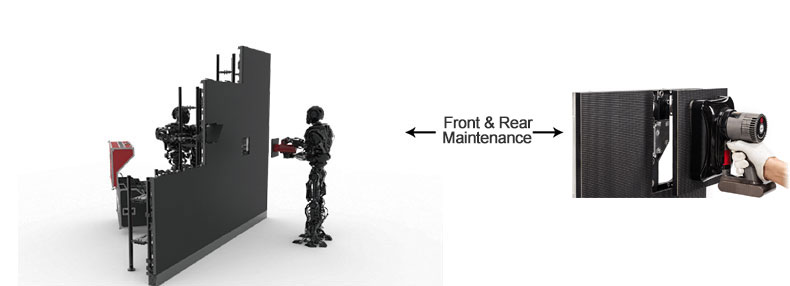

Easy Maintenance:
This indoor & outdoor LED display adopts rear service with magnet.

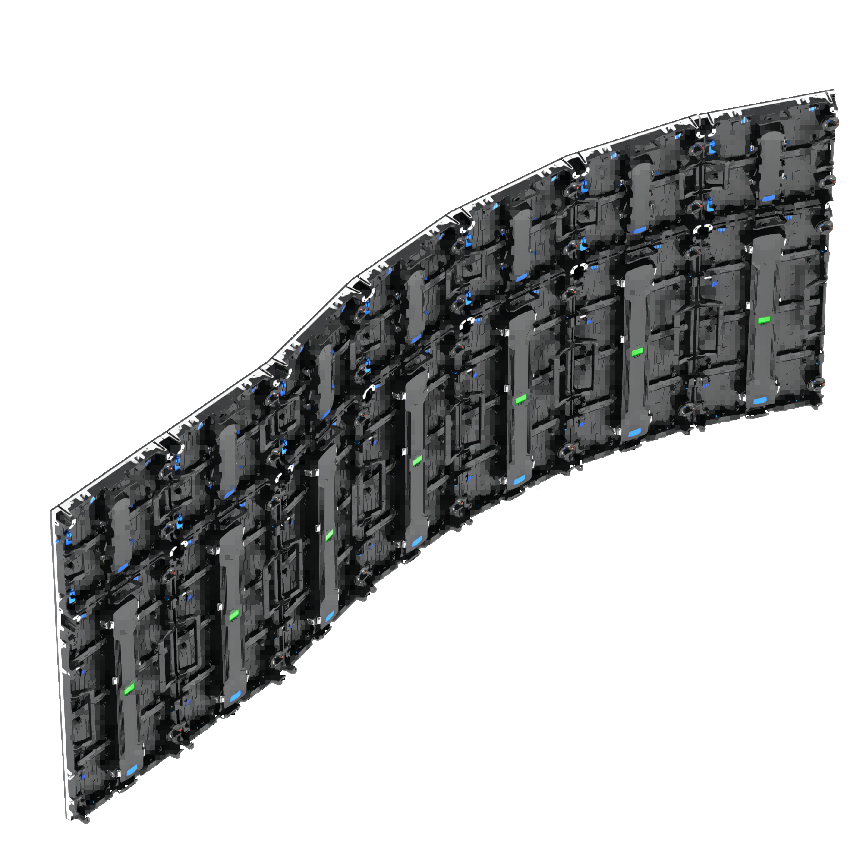

Excellent 45 degree Cabinet design:
It's a quite nice design LED display. Its inner and out curve can be set into a circle shape.
Quick installation
Brilliant module design:
Maintenance: rear service with magnet.
Inner and out curve, can be circle shape .
Product Specification:
Here provides product specification of LK-RC series outdoor LED display and indoor LED display. If you have any questions about this outdoor & indoor LED display screen, please contact us by filling our form. Whatever you need an outdoor LED display or an indoor LED screen, we can offer you an ideal LED display solution.
Outdoor specifications
Items | Parameter | |||
Pixel pitch | P2.976 | P3.91 | P4.81 | P5.95 |
Dot distance(mm) | 2.976 | 3.91 | 4.81 | 5.95 |
LED type | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
Module resolution(dots) | 84*84 | 64*64 | 52*52 | 42*42 |
Driving method(scan) | 1/14 | 1/8 | 1/9 | 1/7 |
Density(dot/m²) | 112892 | 65536 | 43264 | 28224 |
Brightness(cd/m²) | 4500 | 5000 | 4500 | 5000 |
Working voltage (V) | 110/230VAC | |||
Working temperature | -20℃-60℃ | |||
Cabinet material | Die-casting Alu | |||
Cabinet size(mm) | 500*500 or 500*1000 | |||
Cabinet weight | 8-12kg | |||
support hanging(yes/no) | yes | |||
Best viewing distance | ≥3 | ≥4 | ≥5 | ≥6 |
Maintenance | rear | |||
Max power consumption(W/m²) | 650 | 700 | 700 | 700 |
Average power consumption(W/m²) | 300 | 300 | 300 | 300 |
Gray scale | 16bits | |||
Refresh rate(Hz) | 1920 or 3840 | |||
IP grade | IP rear54/ front65 | |||
Life span(hours) | 100000 | |||
Indoor specifications
Items | Parameter | |||
Pixel pitch | P2.6 | P2.976 | P3.91 | P4.81 |
Dot distance(mm) | 2.6 | 2.976 | 3.91 | 4.81 |
LED type | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
Module resolution(dots) | 96*96 | 84*84 | 64*64 | 52*52 |
Driving method(scan) | 1/32 | 1/28 | 1/16 | 1/13 |
Density(dot/m²) | 147456 | 112892 | 65536 | 43264 |
Brightness(cd/m²) | 800-1500 | 800-1500 | 800-1500 | 800-1500 |
Working voltage (V) | AC220V/110V | |||
Working temperature | -20℃-60℃ | |||
Cabinet material | Die-casting Alu | |||
Cabinet size(mm) | 500*500/500*1000 | |||
Cabinet weight | 8-12kg | |||
support hanging(yes/no) | yes | |||
Best viewing distance | ≥3 | ≥3 | ≥4 | ≥5 |
Maintenance | Rear/front | |||
Max power consumption(W/m²) | 500 | 450 | 450 | 500 |
Average power consumption(W/m²) | 150-200 | 150-200 | 150-200 | 150-200 |
Gray scale | 16bits | |||
Refresh rate(Hz) | 1920 or 3840 | |||
IP grade | IP rear45/ front54 | |||
Life span(hours) | 100000 | |||
