LK-OF SERIES
Full Front Service
Product Overview:
LEDlink LK-OF series is a front service outdoor LED panel. With custom configuration and ease of use, it is the perfect solution for all commercial advertising display needs.This outdoor LED panel is available in several pitch options that can meet all your needs of various applications. LK-OF series LED display is available in the following pixel pitches: P3.125, P3.91, P4.81, P5.95, P6.944, P8.33, P10.41, P4, P5.33, P6.667, P8, P10.
Features:
Product Features:
Outdoor Full Front Service -- We provide outdoor full front service LED displays. It’s easy to maintain in each case.
Various Installation types -- This outdoor LED screen panel comes in a variety of installation types, including unipole type, double-column type, hanging type, wall mounted type and more. That makes it become an ideal choice for commercial advertising displays.
Waterproofness: With high waterproofness design, LK-OF series outdoor LED panel can operate efficiently in various environments.
P3.125 P3.91 P4.81 P5.95 P6.944 p8.33 P10.41,P4 P5.33 P6.667 P8 P10

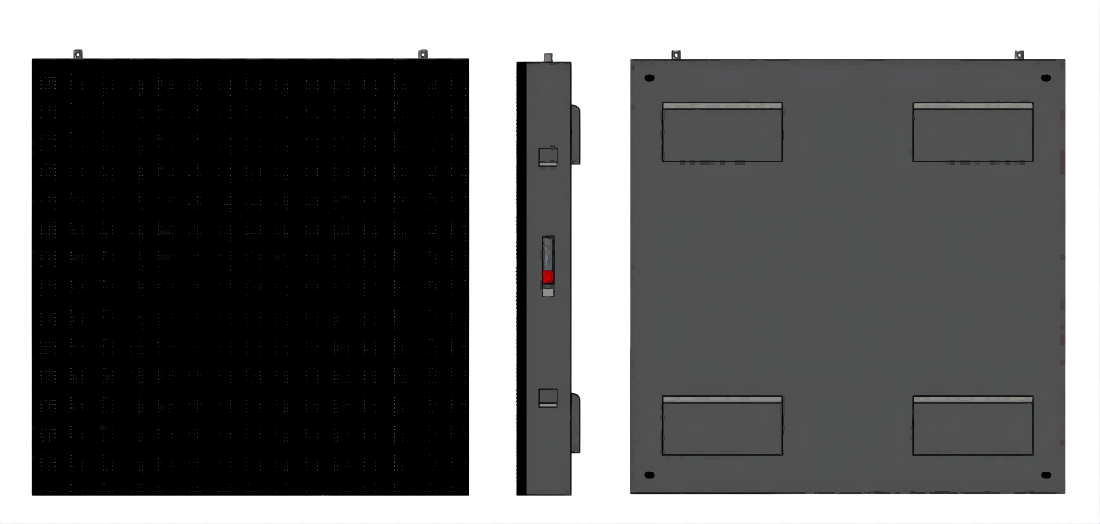

Cabinet Detail

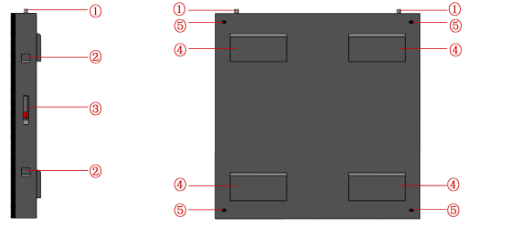

 | ①. Locating dowel pin ②. internal hole for two cabinet cross the lan cable. ③. handle ④. waterproof cover inside have fan and fan vent. ⑤. Holes for connectors between cabinet |

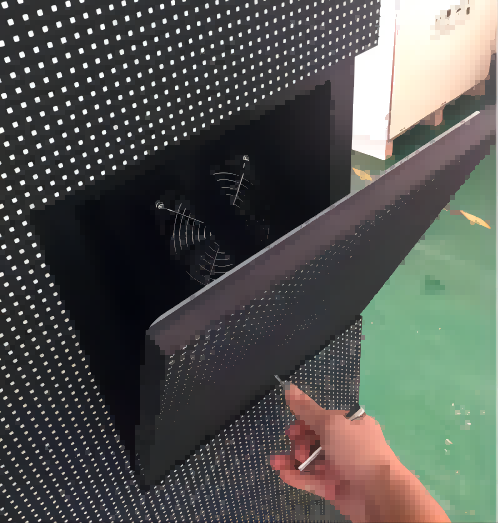

Module Front Service With T-type Toll

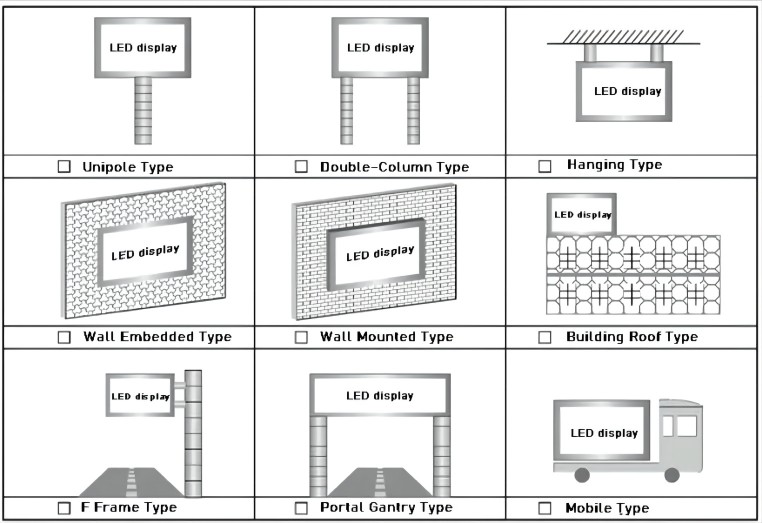

| Installation type:
|

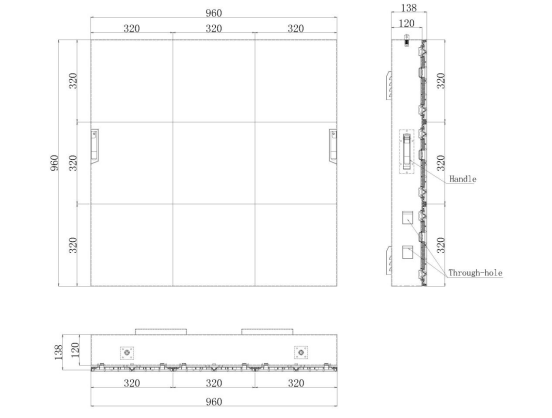

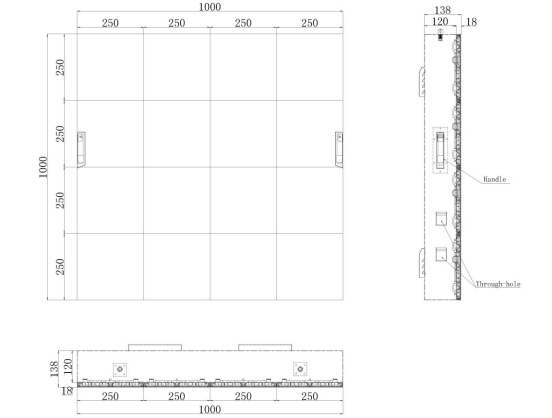

Product Diagram(Unit:mm)
 |  |
Product Specification:
We provide product specification of 250*250mm and 320*320mm outdoor LED display. If you have any questions about this outdoor LED panel, please contact us. Customized outdoor LED display is available at LEDlink as well!
250*250mm Product Specifications:
Items | Parameter | ||||||
Pixel pitch | P3.125 | P3.91 | P4.81 | P5.95 | P6.94 | P8.33 | P10.41 |
Dot distance(mm) | 3.125 | 3.91 | 4.81 | 5.95 | 6.94 | 8.33 | 10.41 |
LED type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
Module size(mm) | 250*250 | ||||||
Module resolution(dots) | 80*80 | 64*64 | 52*52 | 42*42 | 36*36 | 30*30 | 24*24 |
Driving method(scan) | 1/10 | 8/16 | 6/7 | 1/7 | 1/6 | 1/5 | 1/2 |
Density(dot/m²) | 102400 | 65410 | 43222 | 28247 | 20762 | 14400 | 9227 |
Brightness(cd/m²) | ≥6500 | ≥6500 | ≥5500 | ≥6000 | ≥6000 | ≥5000 | ≥6000 |
Working voltage (V) | AC220V/110V | ||||||
Working temperature | -20℃-60℃ | ||||||
Cabinet material | Alu/Iron | ||||||
Cabinet size(mm) | 1000*1000*138 | ||||||
Cabinet weight(kg) | 60kg | ||||||
support hanging(yes/no) | no | ||||||
Best viewing distance | 3 | 4 | 5 | 6 | 7 | 8 | 10 |
Maintenance | front | front | front | front | front | front | front |
Max power consumption(W/m²) | 880 | 800 | 850 | 700 | 800 | 800 | 780 |
Average power consumption(W/m²) | 350-400 | 320-360 | 350-400 | 280-320 | 350-380 | 320-350 | 320-380 |
Gray scale | 16 bits | ||||||
Refresh rate(Hz) | 1920/3840 | ||||||
IP grade | Front 65/ back 54 | ||||||
Life span(hours) | ≥100000 | ||||||
320*320mm Product Specifications:
Items | Parameter | ||||
Pixel pitch | P4 | P5.33 | P6.667 | P8 | P10 |
Dot distance(mm) | 4mm | 5.33mm | 6.667mm | 8mm | 10mm |
LED type | SMD1921 | SMD1921 | SMD2727 | SMD2727/3535 | SMD3535 |
Module size(mm) | 320*320 | ||||
Module resolution(dots) | 80*80 | 60*60 | 48*48 | 40*400 | 32*32 |
Driving method(scan) | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
Density(dot/m²) | 62500 | 35200 | 22477 | 15625 | 10000 |
Brightness(cd/m²) | ≥5500 | ≥5000 | ≥5500 | ≥5000 | ≥6000 |
Working voltage (V) | AC220V/110V | ||||
Working temperature | -20℃-60℃ | ||||
Cabinet material | Alu/Iron | ||||
Cabinet size(mm) | 960*960 | ||||
Cabinet weight | 50kg | ||||
support hanging(yes/no) | no | ||||
Best viewing distance(m) | 4 | 6 | 7 | 8 | 10 |
Maintenance | Front | ||||
Max power consumption(W/m²) | 850 | 750 | 800 | 800 | 850 |
Average power consumption(W/m²) | 350--400 | 320-350 | 320*360 | 320-360 | 350-400 |
Gray scale | 16bits | ||||
Refresh rate(Hz) | 1920/3840 | ||||
IP grade | Front 65/ back 54 | ||||
Life span(hours) | ≥100000 | ||||
